Frelonic Stall Mat Assembly


	One Lehner Road \| Saco, ME 04072 (800) 669-0364 ext. 307

Horse Stall Mat Assembly

SUB-SURFACE PREPARATION OF HORSE STALLS
For maximum effectiveness sub-surface preparation is extremely important. Frelonic horse stall mats can be placed over concrete, wood, asphalt or crushed stone. A crush stone base should comprise of 1/4' stone in size and be approximately 3-6 inches deep. The crush stone base should exclude any dirt. Surface must be compacted and leveled. Once completed, your Frelonic lightweight interlocking mats can be immediately installed.

INSTALLATION OF MATS IN HORSE STALLS

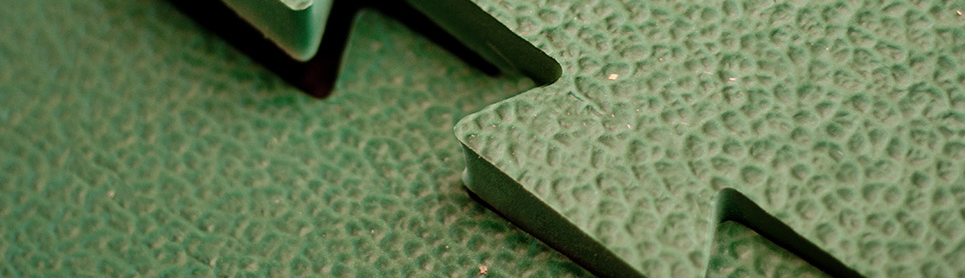

Frelonic interlocking stable mats are simple to install. Each 4' x 6' mat weighs only 30 pounds compared to rubber which weighs 100 pounds. Frelonic mats come pre-packaged for both 12' x 12' and 10' x 12' foot stalls. Each set is designed to allow ½' between stall walls and edges of stall mats. Other size stalls can be installed by trimming for smaller stalls or adding additional inter-locking mats for larger stalls. Stall size should not exceed 12' x 16'. Note: Frelonic stall mats are specifically designed for indoor stall use only.

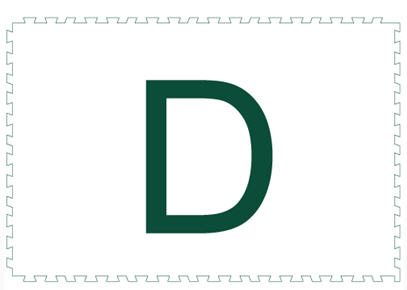

D Mat 4' x 6' Interlocking Individual Horse Stall Mat




			Easy to handle Less costly to ship Sixty-six percent lighter than rubber

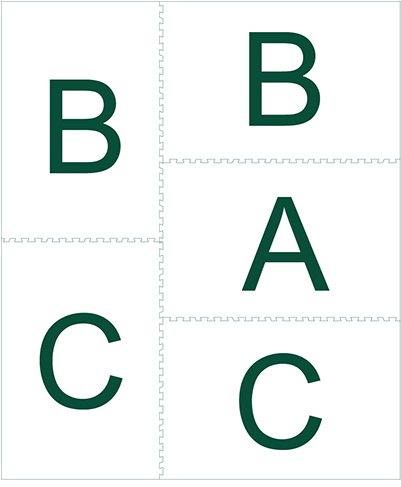

10' x 12' Interlocking Horse Stall Mat Set




			6 mats per set Stall size 10' x 12' or under Finished edge perimeter

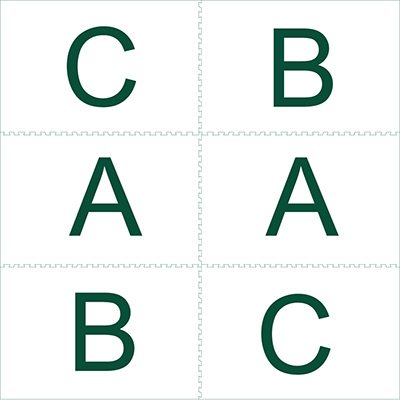

12' x 12' Interlocking Horse Stall Mat Set




			6 mats per set Stall size 12' x 12' or under Finished edge perimeter
